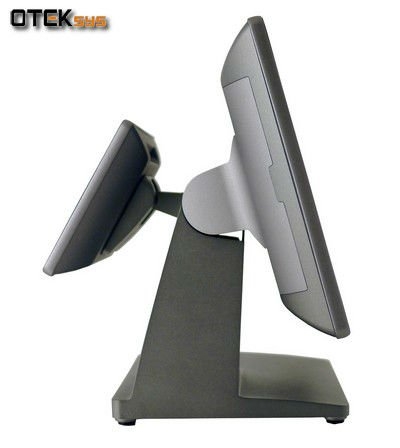

M667TP All in One touch screenPOS

ข้อมูลสินค้า

จำนวน

15 inch True Flat ALL IN ONE POS Terminal
* 15' Resistive or P-cap touch
* Fan less design
* Support 2nd display

15 inch True Flat ALL IN ONE POS Terminal

Feature:

* 15' resistive touch or P-cap touch monitor

* Fan less design

* Designed with Intel Dual Core Pineview D525

* Die-casting Aluminum housing and stand

* Smart cable management

* Spill proof & Anti-dust

* Wall mount available (VESA)

* Support 2nd display

Specifications

Model No.	M667TP	M667PP
CPU Support	Intel Pineview D525 Duo Core, 1.8G, L2 1M FSB667/800MHz
Chipset	CPU integrated graphic + ICH8M
System Memory	1 x DDR3 SO-DIMM socket up to 2GB
Graphic Memory	Intel GMA 3150 share system memory up to 256MB
LCD Panel
LCD Size	15'
Brightness	250 cd/m²
Maximal Resolution	1024 * 768
Touch Screen Type	Resistive	Projective Capacitive
Tilt Angle	4~84
Storage
HDD	1 * 2.5' slim SATA HDD
Rear I/O
PCI-E socket	1
USB	4 ports (V2.0)
Serial / COM	4 * RJ-45 COM connectors
LAN (10/100/1000)	1 x RJ 45
DC Jack	1
VGA	1
Cash Drawer Port	1
Speaker	1 x 2W speakers
Power
Power Adaptor	65W 19V / 3.4A
Environment
Operation Temperature	5 °C ~ 35 °C (41°F ~ 95 °F)
Storage Temperature	-20 °C ~ 55 °C (-4 °F ~ 131 °F)
Operation Humidity	20% ~ 80% RH non condensing
Storagte Humidity	20% ~ 85% RH non condensing
Physical Dimention	(W) 365.2 * (H) 220 * (D) 339 mm
Weight (Net)	5.8kgs
Optional Item
MSR	MSR (USB)
Mounting	VESA 75 * 75 mm
2nd Display	7' /8.4' /10.4' 2nd display w/ touch
*Product specification to be changed without prior notice
*Made In Taiwan
